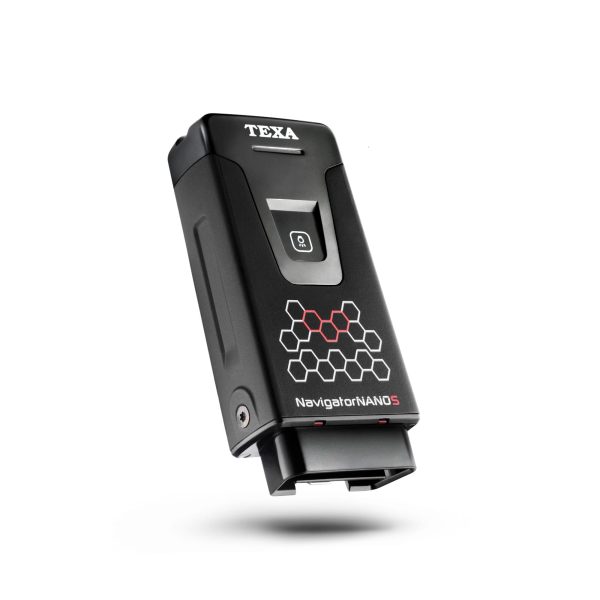

TEXA Navigator NANO S
The practical diagnostic interface
Navigator NANO S is a latest generation vehicle interface from TEXA that lets you run all kinds of diagnostics on cars, light commercials, motorcycles, scooters, quads and jetskis..
Every aspect of the Navigator NANO S has been carefully designed and developed to fully satisfy the needs of the modern garage and to allow mechanics to complete all diagnostic tests quickly and easily.
This compact, lightweight and ergonomic interface is designed to function simply and automatically with TEXA’s latest generation display units
**highly recommended for SUPERCAR software
The Navigator NANO S is the simplest of TEXA’s vehicle interfaces.
Small, lightweight and ergonomic and extremely quick in exchanging data both with the vehicle and the diagnostic display unit, this vehicle interface allows you to carry out all operations on cars, light commercial vehicles, motorcycles, scooters, quads and jetskis.
Diagnosis without compromise
The Navigator NANO S is a perfect match for all the TEXA display solutions that use the extraordinary IDC5 operating system, and can run even the most advanced functions, including:
– TGS3s, for the automatic scanning of all diagnosable ECUs on a vehicle*;
– VIN SCAN, for the automatic identification of the vehicle from its VIN;
– “SOLVED PROBLEMS” powered by Google
– … and all other IDC5 functions.
*TGS3s may not be able to perform automatic scanning on older vehicles.
TECHNICAL SPECIFICATIONS
CORTEX M3 STM32F103 72MHzMEMORY
External SRAM: 8 MBit organised in 512 K x 16 bit
External NAND flash memory: 2 Gbit on 8 bit busINTERNAL BATTERY
Lithium polymer, single cell, 3.7 V 250 mA/h
VEHICLE ELECTRICS
12 VDC vehicle systems
EXTERNAL POWER SUPPLY
8 ÷ 16 V
WIRED CONNECTION
Virtual RS232 via USB 2.0 device
WIRELESS CONNECTION
Bluetooth Class1
ELECTRONIC SWITCHING
2 way, 13 independent positions
OBDENVIRONMENTAL
Operating temperature: 0 ÷ 50 °C
Storage temperature: -20 ÷ 60 °C
Operating relative humidity: 10% ÷ 80% non-condensingDIMENSIONS
51x23x100 mm
WEIGHT
72 g
PROTOCOLS SUPPORTED
Blink codes, K, L (with 60mA current protection) ISO 9141-2, ISO 14230, CAN ISO 11898-2, CAN ISO 11898-3, SAE J1850 PWM and VPW
STANDARDS
Directive: 1999/5/EC
Safety: EN 60950-1
Electromagnetic Compatibility: EN 301 489-1, EN 301 489-17
Radio systems: EN 300 328-2
