FEATURES:

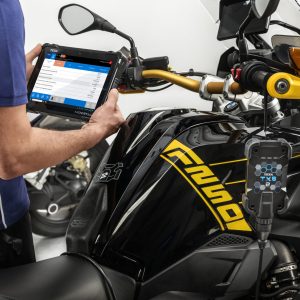

- Enables you to diagnose light, medium & heavy duty (optional) vehicles with Smartlink C.
- Full system vehicle coverage for U.S., Asian and European markets over 110 manufacturers, which is continually updated.
- Real-time voltage display is supported, which helps you monitor the voltage condition of the vehicle during the diagnosis.
- Intelligent diagnostic enables automatic VIN identity to automatically access systems quickly.
- Intelligent and local diagnostic, which include full diagnostic functions, such as read/clear DTC, live data streaming, bi-directional control, coding, etc.
- Guided functions for VW and AUDI. (Support a total of over 30,000 functions for VW and AUDI)
- Optional ADAS calibration function increases more revenue.
- Advanced coding and programming function.
- An extended solution to support TPMS service.
- The software is available to purchase separately on the MALL at any time.
- Built-in repair information and training videos help to track and fix issues fast.
SPECIFICATIONS:
| Operation System | Android 10.0 |
| Display | 10.1″, 1280*800 |
| CPU | 2.0GHz, Quad-core |
| Memory | 4GB |
| Storage | 64GB |
| Battery | 47.88Wh (7.6V, 6300mAh) |
| Camera | Rear 8MP |
| VCI Connection | Bluetooth |
| Dimension | 274*190.5*40.5 mm |
| Interface | TYPE A*1 & TYPE C*1 |
| SMARTLINK C V2.0 | |
| Display | 3.95” 320*480 |
| Memory | 256M |
| Storage | 8GB |
| Remote Communication | Local Diagnosis: WiFi/BT/USB |
| SmartLink Remote Diagnosis: WiFi/Ethernet | |
| Working Voltage | 9V DC ~ 36V DC |
| Dimensions | 200*110*47 mm |
