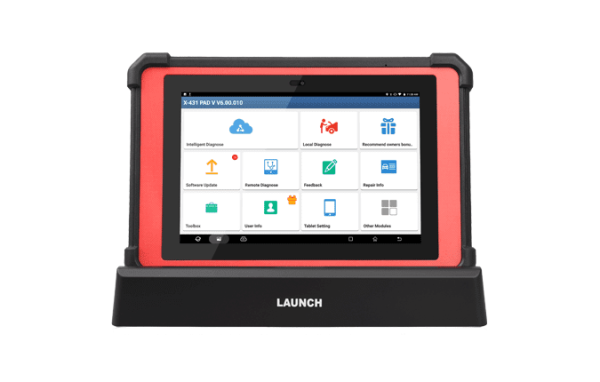

LAUNCH X431 PAD V
X-431 PAD V is a high-end comprehensive diagnostic tool with charging base newly developed on the basis of Android 7.1. It supports dual 2.4GHz & 5GHz Wi-Fi communications, with features such as wide vehicle model coverage, powerful diagnostic functions, and accurate test data. Its IP65 case has exceptional damages resistance for water and dust, which will make workshop work easier and more comfortable. All these unique features will offer you a luxury experience of vehicle diagnosis.
PRODUCT SPECIFICATIONS:
| Processor | 8-core processor |
| Memory | 4GB |
| Storage | 64 GB internal + 128 GB expandable memory |
| Operation System | Android 7.1 |
| Screen | 10.1 inch touch screen display with Gorilla Glass for sunlight condition |
| Resolution | 1920×1200 |
| Wi Fi | Dual Band 2.4 & 5 Ghz |
| Camera | Rear 13 Megapixels, front 8 Megapixels |
| Diagnostic Communication | Wi-Fi and wired |
| Writing Temperature | 0 – 50°c |
| Dimension | 320X211 X 46mm |
SmartBox 3.0 Specifications:
| Main parameters | Main structure | Dual processor: Cortex – A7 + Cortex – M7 |
| Operation System | Linux | |
| Memory | 256M | |
| Storage | 8GB | |
| Power supply | DC 9 ～36V | |
| External interface | USB | Type B USB 2.0 |
| Bluetooth | BLE 4.0 + EDR | |
| WIFI | Support 2.4G / 5GHZ dual-band | |
| Indicator lamp | 5 multifunction indicator lamps | |
| Vehicle connection | J1962 16PIN |
SPECIAL FUNCTIONS
FEATURES:
1. Full vehicle system coverage for over 110 brands in the world, which is continually updated
2. Full-function scan tool for both cars and trucks
3. Support J2534, DolP, CAN FD and other protocols with SmartBox 3.0 connector
4. Automatically identify VIN upon connection to the vehicle for intelligent diagnosis
5. Remote diagnosis allowing you to work on a vehicle from your tool without being on-site
6. Read all OTC types for full system, view, graph and record data PIDs, support bi-directional controls, actuation test and all other diagnostic functions
7. Guided function for Volkswagen and Audi
8. Advanced coding and programming function
9. 16 special functions available
10. ADAS calibration function is optional
11. Compatible with 5 extended module: Oscilloscope, sensor, battery test, endoscope, WiFi printer
12. One-Click Upgrade and silent install for software
13. Diagnostic records and reports can be stored in the cloud without any concern of data missing
14. Integrated database with comprehensive vehicle service and repair information
15. The latest 2.4 & 5GHz Dual Wi-Fi with high transfer speed, strong anti-interference and long-distant diagnosis ability
16. IP65 case with exceptional damage resistance to the water and dust for workshop use
17. Docking & charging station included with QC3.0 Quick Charge technology
18. Support USB Type C & Type A
