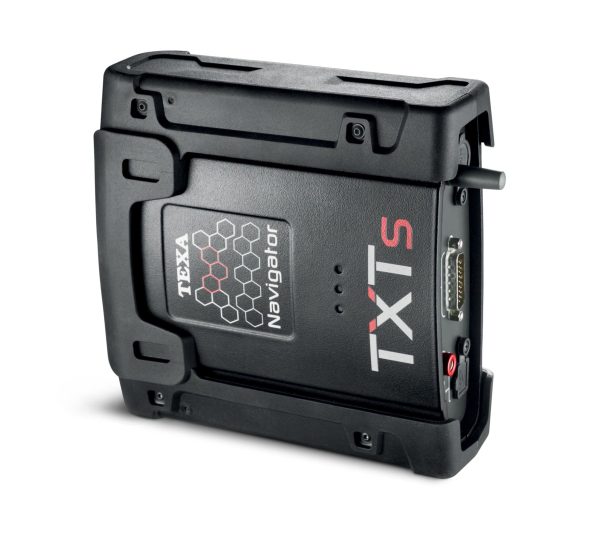

TEXA NAVIGATOR TXTs

Ultimate solutions for SUPERCAR, CAR, TRUCK, BIKE, OFF-HIGHWAY & MARINE

Category: Auto Diagnostic Tools

TECHNICAL SPECIFICATIONS

PROCESSOR	CONTROL UNIT REPROGRAMMING CONNECTOR
CORTEX M3 STM32F103ZG 72 MHz, FLASH 1024 KBytes, SRAM 96 KBytes	PV as required by the SAE J2534 protocol

MEMORY	ENVIRONMENTAL
SRAM memory: 8 MBits organized 512 KBytes x 16 bits, Memoria NAND Flash 1 GBit on bus a 8 bit	Operating temperature: 0 ÷ 50 °C
	Stocking temperature: – 20 ÷ 60 °C
VEHICLE BATTERY	Operating moisture: 10 ÷ 80 % senza condensa
12 VDC and 24 VDC systems’ management
	DIMENSIONS
EXTERNAL POWER SUPPLY	160x170x55 mm
8 ÷ 32 Volt
	WEIGHT
USB COMMUNICATION	1 kg
virtual RS232 via USB 2.0 Device
	SUPPORTED PROTOCOLS
WIRELESS CONNECTION	Blink codes K, L (with current protection 100 mA), ISO9141-2, ISO14230; CAN ISO11898-2, ISO11898-3 SAE J1850 PWM SAE J1850 VPW SAE J2534-1
Bluetooth class1 (30 m)
	REGULATIONS
ELECTRONIC SWITCH	Directive: 1999/5/EC
2-way, 13 independent positions	Safety: EN 60950
	Electromagnetic compatibility: EN55022, EN 55024, EN 301 489-1
DIAGNOSTIC CONNECTOR	Radio
DSUB-26HD standard ISO 22900-1
