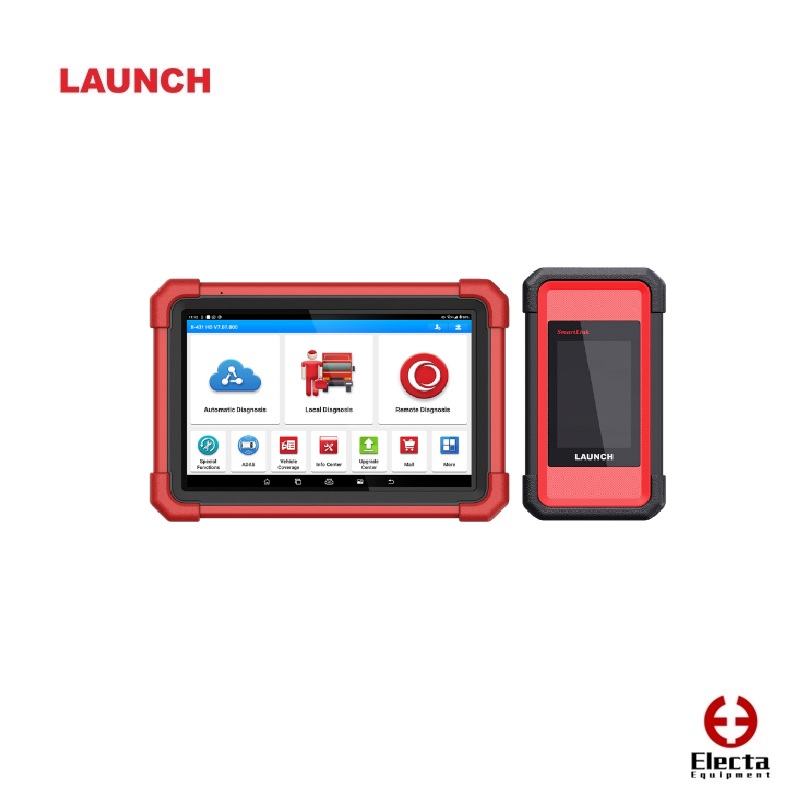

X431 Pro3 Link HD

FEATURES:

1. Access to the vehicle system faster throughout modular design.

2. Support X-431 Fix database to fix the problems.

3. The software is available to purchase separately on the Mall at any time.

4. Brand new tablet integrated with comprehensive heavy-duty coverage.

5. Empower you to diagnose light, medium & heavy-duty vehicles.

6. Flexible options for USB, Bluetooth and Wi-Fi connection.

7. Basic functions include Read & clear DTC, VIN scan, wireless connection, diagnostic record review, bi-directional test, etc.

8. Support Smartlink Remote Diagnosis.

9. Optional ADAS HD calibration increases more revenue.

10. 21 Service Functions: DPF Regen, Parameter Setting, Cylinder Deactivation Compression, Oil Maintenance Reset, Injector Coding, Speed Limit Adjustment, Idle Speed Adjustment, Fan Calibration, Remote Throttle, Urea Drive(DEF), Deep Clearing of DTCs, Flash Data Conversion, Brake Reset, Transmission Replacement, Nox Sensor Reset, Aftertreatment, Immobilizer, Suspension, Odometer, Language Change, PTO Change

11. Toolbox for multiple add-on modules, including Oscilloscope, Sensorbox, Battery Tester, Videoscope and Wi-Fi printer, etc.

SPECIFICATIONS:

X-431 PRO3 LINK HD(Tablet)

• OS: Android 10.0
• DISPLAY: 10.1”, 1280*800
• CPU: 2.0GHz, Quad-Core
• RAM: 4GB
• STORAGE: 64GB
• BATTERY: 47.88Wh(7.6V, 6300mAh)
• CAMERA: Rear 8MP
• VCI CONNECTION: 2.4GHz/5GHz
• DIMENSION: 274*190.5*40.5(mm)
• INTERFACE: TYPE A*1 & TYPE C*1

SmartLink C V2.0

• DISPLAY: 3.5”, 320*480
• RAM: 256MB
• STORAGE: 8GB
• WIFI: 2.4GHz/5GHz
• WORKING VOLTAGE: 9V DC~36V DC
• COMMUNICATION: WIFI & Bluetooth & Ethernet
• DIMENSION: 200*110*47(mm)

Vehicle Coverage

AGCO HD, AISIN HD, Allison HD, Ashok Leyland HD, Astra HD, Bendix_ABS HD, CASE HD, Caterpillar HD, Credo HD, Cummins, Detroit HD, DEUTZ HD, Doosan HD, Eaton HD, EICHER HD, ERF HD, FLEXICOIL HD, Freightliner HD, USAFORD DS, Fuso HD, Haldex_ABS HD, HATZ HD, Hino HD, HITACHI HD, Hyundai HD, International HD, IrisBus HD, Irizar HD, Isuzu HD, Iveco HD, JAC HD, JCB HD, John Deere HD, Kenworth HD, KNORR HD, LIEBHERR HD, Mack, Mahindra HD, Man HD, Maxxforce HD, Mercedes-Benz HD, Miller HD, Mitsubishi DS, MWM HD, Neoplan HD, NEW HOLLAND HD, Nissan DS, OBD HD, Paccar HD, Perkins, Peterbilt HD, PSI HD, Renault HD, Scania, Setra HD, Sitcar HD, Sterling HD, Steyr HD, Tata HD, Toyota DS, TRAILER HD, UD, VOITH HD, Volvo HD, Wabco_ABS HD, ZF HD, etc.

120 diagnostic software are available currently, which is continuously updated.
